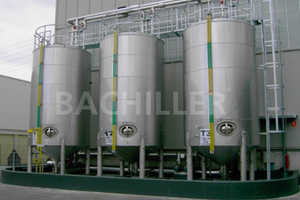

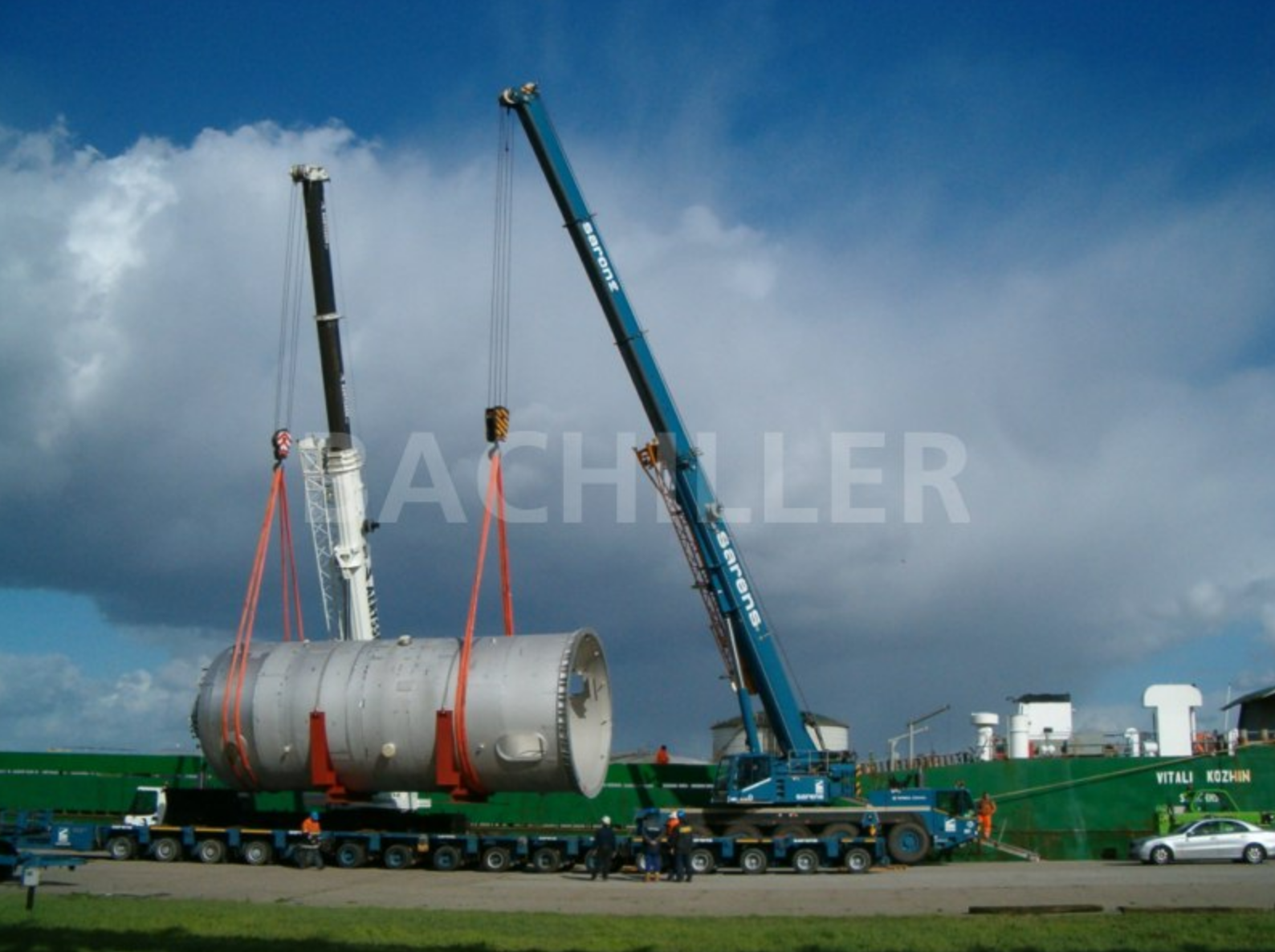

Bachiller designs and builds all kinds of atmospheric storage vessels and tanks according to the main international mechanical design codes, using the ultimate design software and according to the particular specifications of the client.
Mechanical design
- API-650 — DIN-4119 — DIN-6608
- finite element analysis (FEA)
- seismic and wind loads calculations according to the pertinent local rules
Production range
- weight: up to 130 tons
- diameter: 0.2–7.5 m
- height: up to 40 m
- thickness: 3–20 mm
- welding: automatic SMAW welding machines; welding machines for MGAW, FCAW y GTAW; certified welding procedures and welders
Characteristics and options
- volume available from 5–1000 litres
- tanks with flat bottom and conical upper part
- vessels with dished ends
- vertical vessels and horizontal tanks
