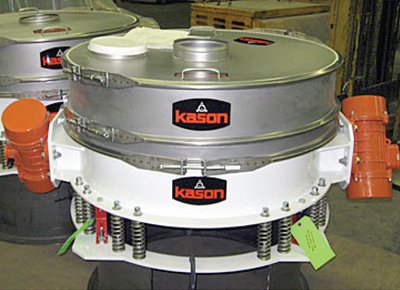

Kason’s ultra-low-profile 1016mm diameter Flo-Thru Vibroscreen sifter is equipped with a flat dust cover that fits tight spots between storage and process equipment.
The sifter employs two imbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit, instead of one motor positioned beneath the screening chamber, reducing overall height significantly.
The design also allows vertical alignment of the top inlet and bottom outlet, causing on-size material to descend through the screen in a straight-through path at high speed. Oversize material is ejected through a spout at the periphery of the screen.
Kason says the unit should be installed above or below storage vessels, bulk bag and drum unloaders, bag dump stations, blenders/mixers and other process equipment.
All material contact surfaces are of stainless steel with continuous welds polished to cGMP, 3-A, USDA and FDA standards.
The Stoke-on-Trent, Staffordshire, UK-based company also manufactures other circular vibratory screeners, as well as centrifugal separators, and circular fluid bed dryers, coolers and moisturisers.
