Bioengineers at Harvard University in the US have developed a gel-based sponge that can be moulded to any shape, loaded with drugs or stem cells, compressed to a fraction of its size, and delivered via injection. Once inside the body, it pops back to its original shape and gradually releases its contents, before safely degrading.
The biocompatible technology, revealed in the Proceedings of the National Academy of Sciences, amounts to a ‘prefabricated healing kit’ for a range of minimally invasive therapeutic applications, including regenerative medicine.
‘What we’ve created is a three-dimensional structure that you could use to influence the cells in the tissue surrounding it and perhaps promote tissue formation,’ said principal investigator David Mooney, Robert P. Pinkas Family Professor of Bioengineering at the Harvard School of Engineering and Applied Sciences (SEAS) and a core faculty member at the Wyss Institute for Biologically Inspired Engineering at Harvard.
The simplest application is when you want bulking
‘The simplest application is when you want bulking,’ said Mooney. ‘If you want to introduce some material into the body to replace tissue that’s been lost or that is deficient, this would be ideal. In other situations, you could use it to transplant stem cells if you’re trying to promote tissue regeneration, or you might want to transplant immune cells, if you’re looking at immunotherapy.’
Consisting primarily of an alginate, or seaweed-based jelly, the injectable sponge contains networks of large pores, which allow liquids and large molecules to easily flow through it. Mooney and his research team demonstrated that live cells can be attached to the walls of this network and delivered intact along with the sponge, through a small-bore needle.
The team also found that the sponge could hold large and small proteins and drugs within the alginate jelly itself, which are gradually released as the biocompatible matrix starts to break down inside the body.
Our scaffolds can be designed in any size and shape
Normally, a scaffold like this would have to be implanted surgically. Gels can also be injected, but until now those gels would not have carried any inherent structure; they would simply flow to fill whatever space was available.
‘Our scaffolds can be designed in any size and shape, and injected in situ as a safe, preformed, fully characterised, sterile, and controlled delivery device for cells and drugs,’ said lead author Sidi Bencherif, a post-doctoral research associate in Mooney’s lab at SEAS and at the Wyss Institute.

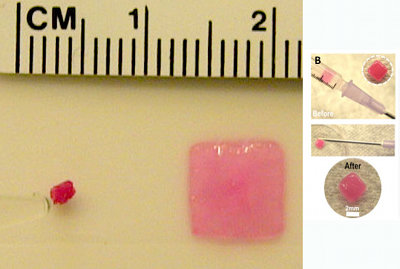

Bencherif and his colleagues pushed pink squares, hearts, and stars through a syringe to demonstrate the versatility and robustness of the gel.
This spongelike gel is formed through a freezing process called cryogelation. As the water in the alginate solution starts to freeze, pure ice crystals form, which makes the surrounding gel more concentrated as it sets. Later on, the ice crystals melt, leaving behind a network of pores. By carefully calibrating this mixture and the timing of the freezing process, Mooney, Bencherif, and their colleagues found that they could produce a gel that is very strong and compressible, unlike most alginate gels, which are brittle.
‘These injectable cryogels will be especially useful for a number of clinical applications including cell therapy, tissue engineering, dermal filler in cosmetics, drug delivery, and scaffold-based immunotherapy,’ said Bencherif.
‘Furthermore, the ability of these materials to reassume specific, pre-defined shapes after injection is likely to be useful in applications such as tissue patches where one desires a patch of a specific size and shape, and when one desires to fill a large defect site with multiple smaller objects. These could pack in such a manner to leave voids that enhance diffusional transport to and from the objects and the host, and promote vascularisation around each object.’
The next step in the team’s research is to perfect the degradation rate of the scaffold so that it breaks down at the same rate at which newly grown tissue replaces it. Harvard’s Office of Technology Development has filed patent applications on the invention and is pursuing licensing and commercialisation opportunities.
Full bibliographic information: Sidi A. Bencherif, et al. "Injectable preformed scaffolds with shape-memory properties," PNAS Early Edition. doi: 10.1073/pnas.1211516109
