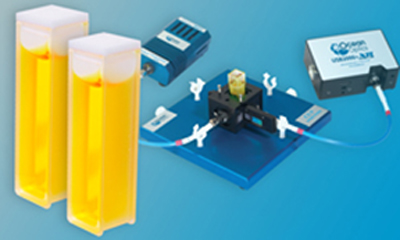

New smart cuvettes ideal for non-intrusive pH monitoring
Optical pH sensing cuvettes turn spectrophotometers into drift-free pH meters
The Smart pH Cuvettes" immobilised indicator dye is encapsulated into a robust sol gel matrix, allowing for the diffusion of ions while preventing leaching of the dye. Unlike traditional pH electrode meters, Smart pH Cuvettes can be used for monitoring low conductivity samples such as boiler water. In addition, fully integrated Smart Cuvette pH systems provide full spectral analysis to help eliminate errors from changes in turbidity, temperature and ionic strength. The physical properties of the immobilised indicator dye eliminate the need for frequent calibration.
Smart pH Cuvettes are 1cm2, come in plastic Poly (methyl methacrylate) (PMMA) or quartz and are coated on their inner walls with a sol gel embedded with Bromocresol Green pH indicator dye. The cuvettes are available separately (in 8-, 50- and 100-cuvette packs) or as part of a fully integrated desktop or handheld spectrometer-based pH system.
The PMMA Cuvettes have a temperature range of -5°C to 70°C, while quartz is available for high-temperature applications. The PMMA Cuvettes are compatible with aqueous solutions, ethanol/methanol solutions, ammonia, peroxides and sodium hypochlorite solutions. The quartz cuvettes also can be used in acetone and concentrated acids (including nitric, sulfuric and acetic). Although PMMA cuvettes are designed to be disposable, they can be used multiple times depending on sample environments.
For additional applications, such as through-package monitoring, Ocean Optics" proprietary pH-sensitive transducer materials can also be formulated as self-adhesive patches and integrated into biological and other types of sample containers.
To learn more about Smart pH Cuvettes, or the company's full range of optical oxygen and pH sensors, visit www.OceanOptics.eu, e-mail info@oceanoptics.eu.
