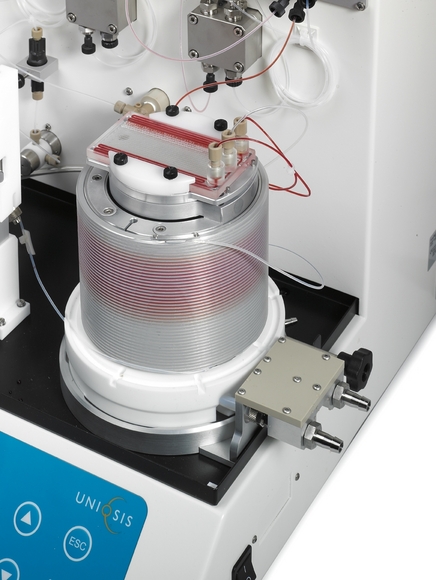

An interchangeable reactor tray is now available for the Uniqsis FlowSyn continuous flow reactor that extends the system's working temperature range down to -40°C.
The "cold tray" reactor module can easily be fitted retrospectively to existing FlowSyn systems.
Used with a suitable heater/chiller unit - both M16 and barbed connections are available - and an appropriate thermal fluid, the system has a validated temperature range from -40°C to +150°C, and will maintain stable low temperature conditions for extended periods. Control is via the standard FlowSyn user interface.
The cold tray can be used with Uniqsis coiled tubing reactors, column reactors, or a combination of both. Two tubing reactors can be simultaneously fitted to the cooled coil module and interconnected via a T-piece, allowing the low temperature introduction of reagents at an intermediate stage of the reaction.
The reactor integrates all the essential elements for continuous flow chemistry into a single, easy to use package.
FlowSyn is said to be simple to set up and operate and offers safe, unattended operation for tasks such as synthesis, reaction optimisation and scale up experiments, in quantities from milligrams to hundreds of grams.
Uniqsis
T +44 845 864 7747
info@uniqsis.com
