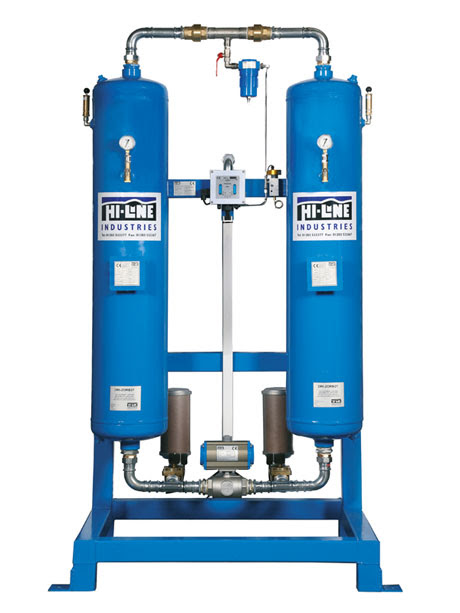

Equipment manufacturer Hi-line Industries now offers a fully featured range of desiccant air dryers. The company’s series of HPSA heatless dryers includes additional standard models, the recently launched HPSA-CT (carbon tower) version, as well as the bespoke HP-HPSA (high pressure) model.
The Hi-line heatless pressure swing adsorption series of desiccant dryers features proven technology developed and manufactured in the UK by the company’s expert engineering team working to approved engineering standards. These ‘plug and play’ units with digital control panels come skid-mounted with their own filtration package (pre- and after-filtration). Available for next-day delivery, all standard HPSA dryers use Dri-Zorb 27 desiccant media that delivers low dewpoints while consuming a small quantity of regeneration air.
The company recently added to the HPSA range with two smaller capacity models. The HPSA 70 and HPSA 100 bring the total number of standard models to 12, with flow capacity from 75 to 1130 scfm (larger heatless dryers are available if required).
Another recent introduction to the range is the HPSA-CT (carbon tower), a three-stage dryer with the carbon tower added after the adsorption dryer. Clean, dry air passes through the Carbon Tower and adsorbs gases and aerosols dependant on requirements and the zeolites selected. This capability makes the HPSA-CT suitable for use in many specific applications.
The Hi-line HPSA-CT features pre-filtration sub-micron oil removal and safety valves as standard, as well as an after-filter for particulate removal. A total of 12 standard HPSA-CT models are available with flow capacity from 80 to 1130 scfm. Larger HPSA-CT dryers are available upon request.
Hi-line can also now offer a bespoke high pressure heatless dryer. This model features the same technology, just running at high pressure. Control air is at 7 bar, but with elevated pressures up to 450 bar for specific applications such as P.E.T. blowing and moulding, R&D applications, breathing air/diving applications, speciality gas blending and laser cutting.
Every HPSA model in the extensive Hi-line range is a automatic, IP65-rated, self-contained unit featuring HDC1 digital dewpoint controller, stainless steel pipework, independent switching valves, exhaust silencers and a one-year warranty on parts and labour. Options include the company’s AEMS - Automatic Energy Management System (with digital dewpoint readout, high-humidity alarm, and set and demand regeneration), dewpoint to -70°C, and automatic start/stop control.
