Swiss sensor manufacturer Sensirion AG is expanding its technology portfolio for liquid flow sensor solutions.
The microsensor specialist has launched a new level of miniaturisation for non-invasive liquid flow sensors based on planar microfluidic substrates.
Innovative packaging enables Sensirion's highly sensitive thermal flow sensor microchips to measure non-invasively through the wall of a flow channel inside a microfluidic substrate (US Pat. 6813944). This design provides unique sensitivity for liquid flow measurement and bubble detection in the microlitre range.

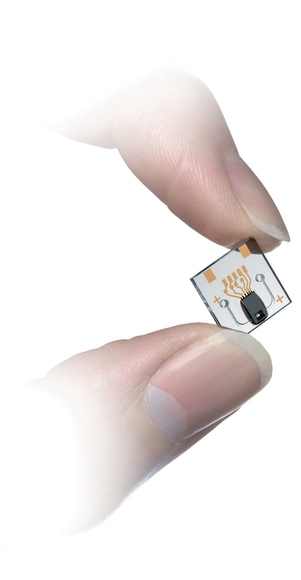

A small digital CMOSens microchip (2.2 x 3.5 mm) is bonded to the microfluidic channel substrate. Beside the sensor element it houses the complete digital intelligence as well as the memory necessary for signal linearisation, temperature compensation and self-test algorithms. The sensor boasts a short flow sensing response time of around 30ms, and sensor resolutions down to 0.5 nl/min are feasible.
Customised OEM solutions based on this technology will be developed for high-volume applications. Sensirion is a high-tech sensor organisation in Staefa near Zurich. The company is a leading international supplier of CMOS-based sensor components and systems.
