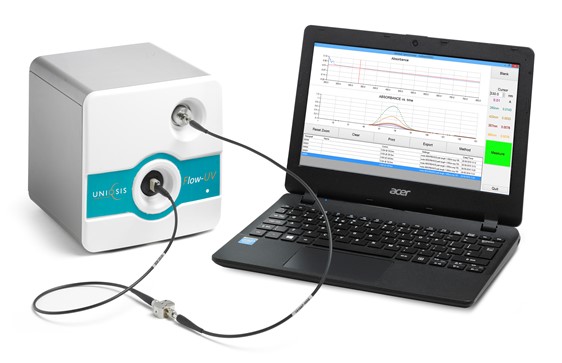

The Flow-UV from Uniqsis is a universal in-line UV-Visible detector that sets a new standard for real time monitoring of continuous flow applications.
The compact, high-resolution Flow-UV CCD array detector does not require calibration or routine servicing. The Xenon flash lamp source used in the Flow-UV has a lifetime of up to 10 years, and the device is extremely easy-to-use.
Having set up and saved a method using the Flow-UV control software, a single button press will start acquisition.
To assure linearity of response, the detector allows you to select up to 5 wavelengths over which to monitor a reaction, ensuring detector saturation is avoided. Absorbance is plotted against time using the system control software, which can be configured to automatically record a background spectrum at the beginning of each experiment.
Fibre optic waveguides connect a choice of Flow-UV high pressure flow cells to the source and detector thereby permitting the flow cell to be positioned virtually anywhere in the flow path. The flow cell uses a short length of PFA reactor tubing and is therefore not restricted to being located after the outlet back pressure regulator in the low-pressure region of the flow path where outgassing could be problematic.
