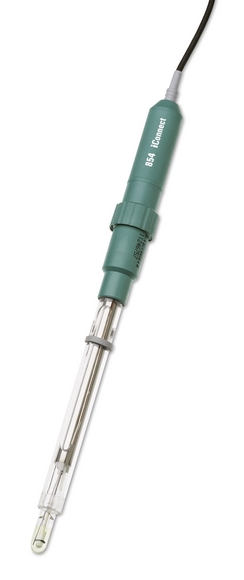

Metrohm Unitrodethe universal electrode The Unitrode combination glass electrode has been designed for a wide range of applications/industries:
Beverages: Soft drinks, wine, juices, dairy
Pharmaceutical
Environmental
Dyes, Inks
Electroplating
Emulsions
For difficult samples, such as dyes, inks, resins, polymers, beverages, and suspensions to basic easy-to-measure. applications, the Unitrode provides outstanding performance and stability in industry and academia. With temperature specifications that reach 100°C, the Unitrode can cope with rough measuring conditions. Optimised Design Sleeve Diaphragm
Due to its more defined electrolyte flow and minimized blockage, the electrolyte diaphragm of choice for precision pH measurements is the sleeve diaphragm, which offers an extremely reliable and precise measuring system. With a fixed sleeve design that creates a sharp and well-defined interface between the sample and the sleeve, the possibility of sample carryover is greatly reduced, minimizing cross contamination and memory effects. The fixed ground-sleeve diaphragm itself is resistant to dirt and particles. In addition, its annular design ensures that there is only a small difference in observed pH values between a stirred and an unstirred solution. This aspect is particularly important for pH measurements in more difficult samples since they usually have to be stirred during the analysis to maintain consistency.
Long Life. Reference system
This new electrode also uses the Metrohm Long Life. reference system with the Ag/AgCl cartridge with it's silver ion barrier to ensure an extended life and consistent measurements. Unique Glass Membrane Design
All of the Unitrodes have a cylindrical pH glass membrane manufactured from green U glass, which is tolerant of high temperatures and highly alkaline samples and shows excellent response with sample measurements with a pH of 14. Metrohm Unitrodes can also be used in partial non-aqueous media up to 10%. Support from Metrohm UK
Talk to Metrohm about the 2009 Electrode Fitness Test, our drive to ensure you are using the correct electrode for the correct job. Metrohm also offer a standing order service on electrodes and accessories to ensure you never have to halt analysis whilst waiting for replacement electrodes.
